OVERTAKE Top Mount Intercooler - Subaru 2002-2007 WRX, 2004-2021 STI, 2004-2008 Forester XT

OVERTAKE Top Mount Intercooler - Subaru 2002-2007 WRX, 2004-2021 STI, 2004-2008 Forester XT

Name: OVERTAKE Top Mount Intercooler - Subaru 2002-2007 WRX, 2004-2021 STI, 2004-2008 Forester XT
Rating: 5.00 (1 reviews)

$775.00

In stock

SKU: A10382BLK

Color:Black

Variant

Want it shipped by calculating…, …?
Order within calculating….

The factory Subaru top-mount intercooler on the 02-07 WRX and 04-21 STI was built to a stock power target. The tube-and-fin core is easy to damage on the road and undersized for what these cars actually run when driven hard.

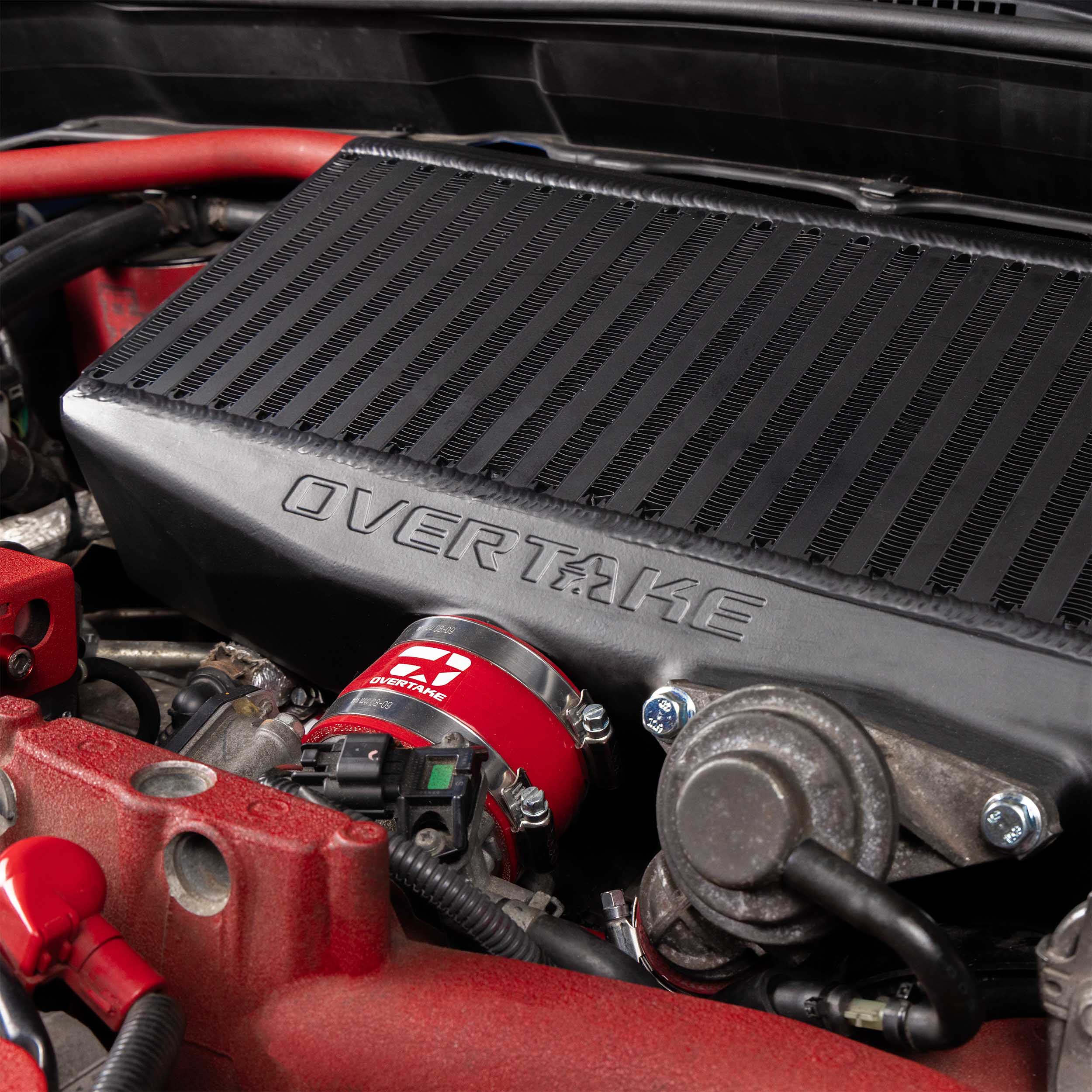

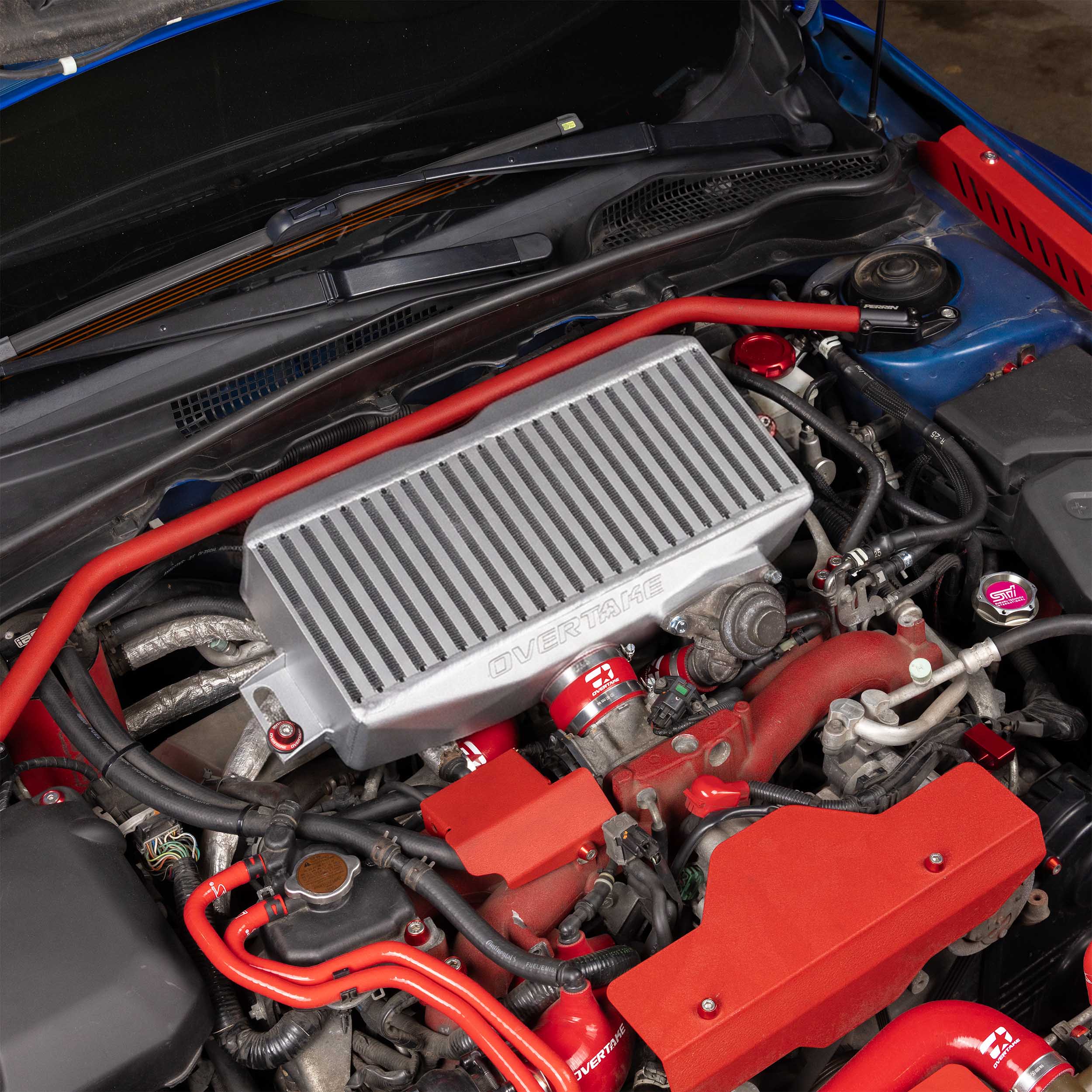

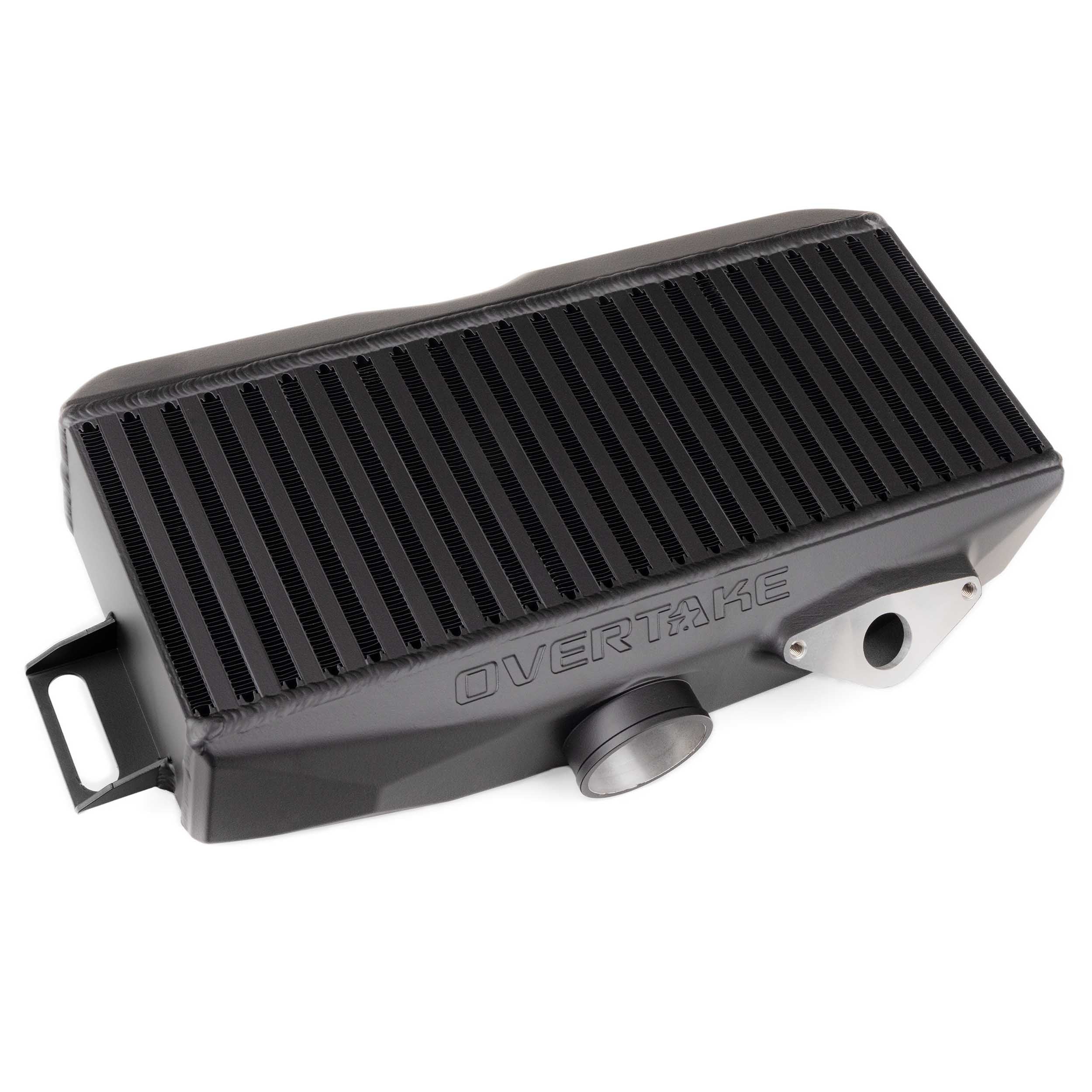

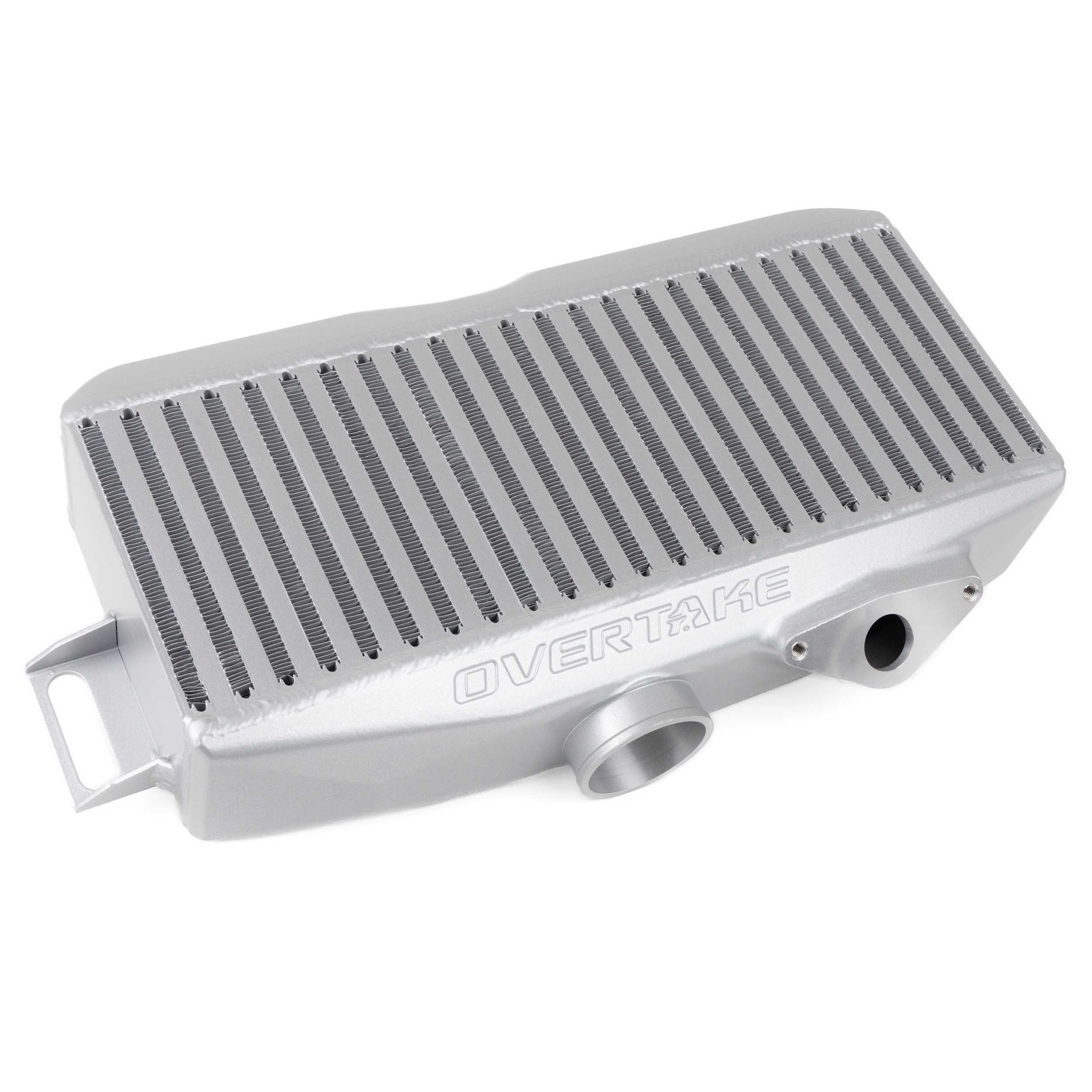

The OVERTAKE Top Mount Intercooler replaces it with a substantially larger all-aluminum bar-and-plate core, cast aluminum end tanks CNC machined and welded to a soldered and pressure-tested core, and inlet geometry designed to match the OEM Y-pipe flow path. This TMIC fits the stock location, stock Y-pipe, stock intake manifold, and stock bypass valve. No tune required.

Why Upgrade to the OVERTAKE TMIC?

Bar-and-plate construction, cast end tanks, and purpose-shaped inlet geometry hold up to the road better than the OEM tube-and-fin and give the TMIC more thermal capacity on back-to-back pulls:

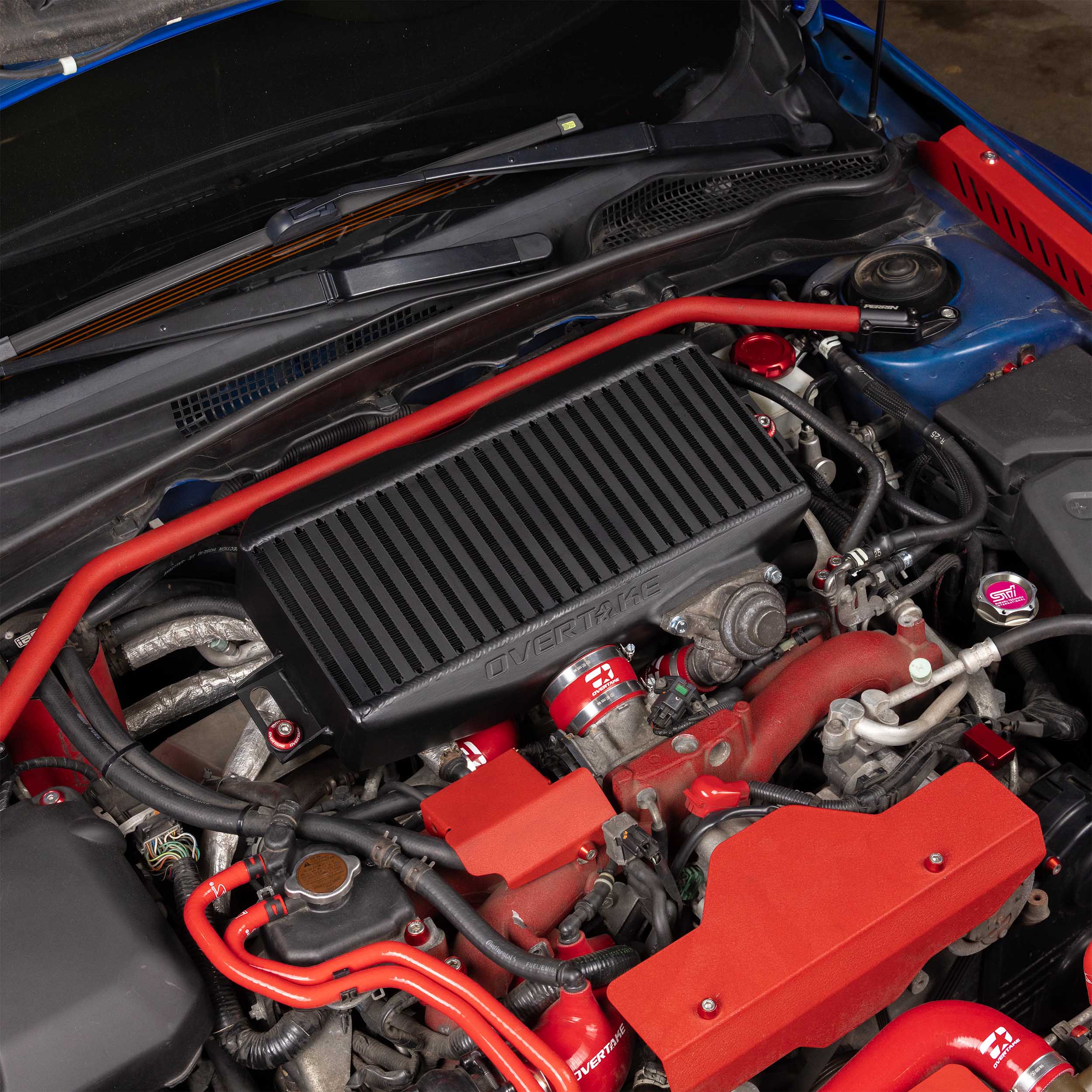

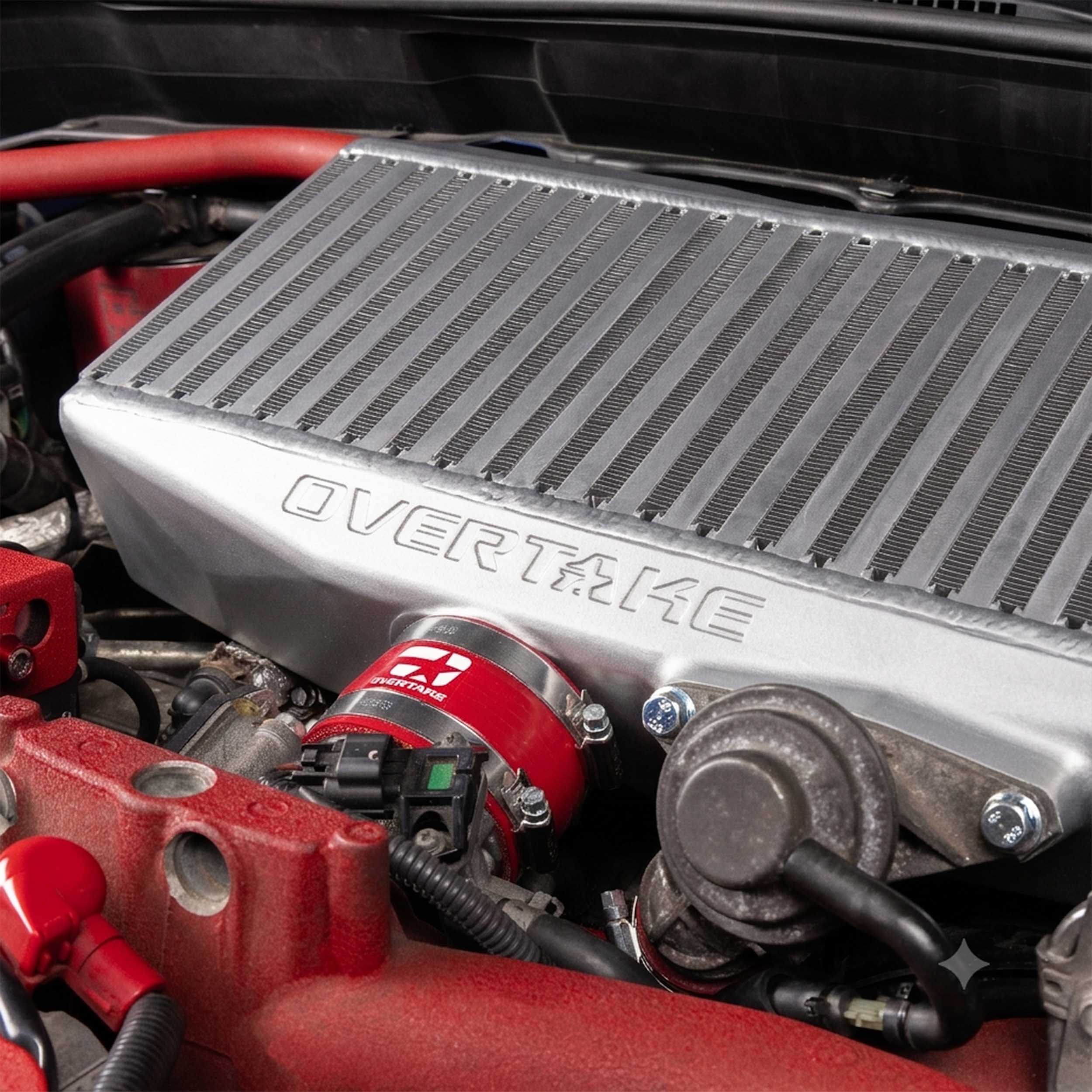

Cleaner Look Under the Hood
Bar-and-Plate Core Holds Up to External Debris
More Thermal Capacity, Less Heat Soak
Fits OEM Y-Pipe, Intake, and BPV

Key Features:

Bar-and-Plate Core, Substantially Larger than OEM: Louvered ambient fins and serrated charge fins, stronger construction, more thermal capacity than the OEM tube-and-fin, engineering datalog shows 10-15°F outlet at the same boost and inlet conditions where stock reads 25-35°F

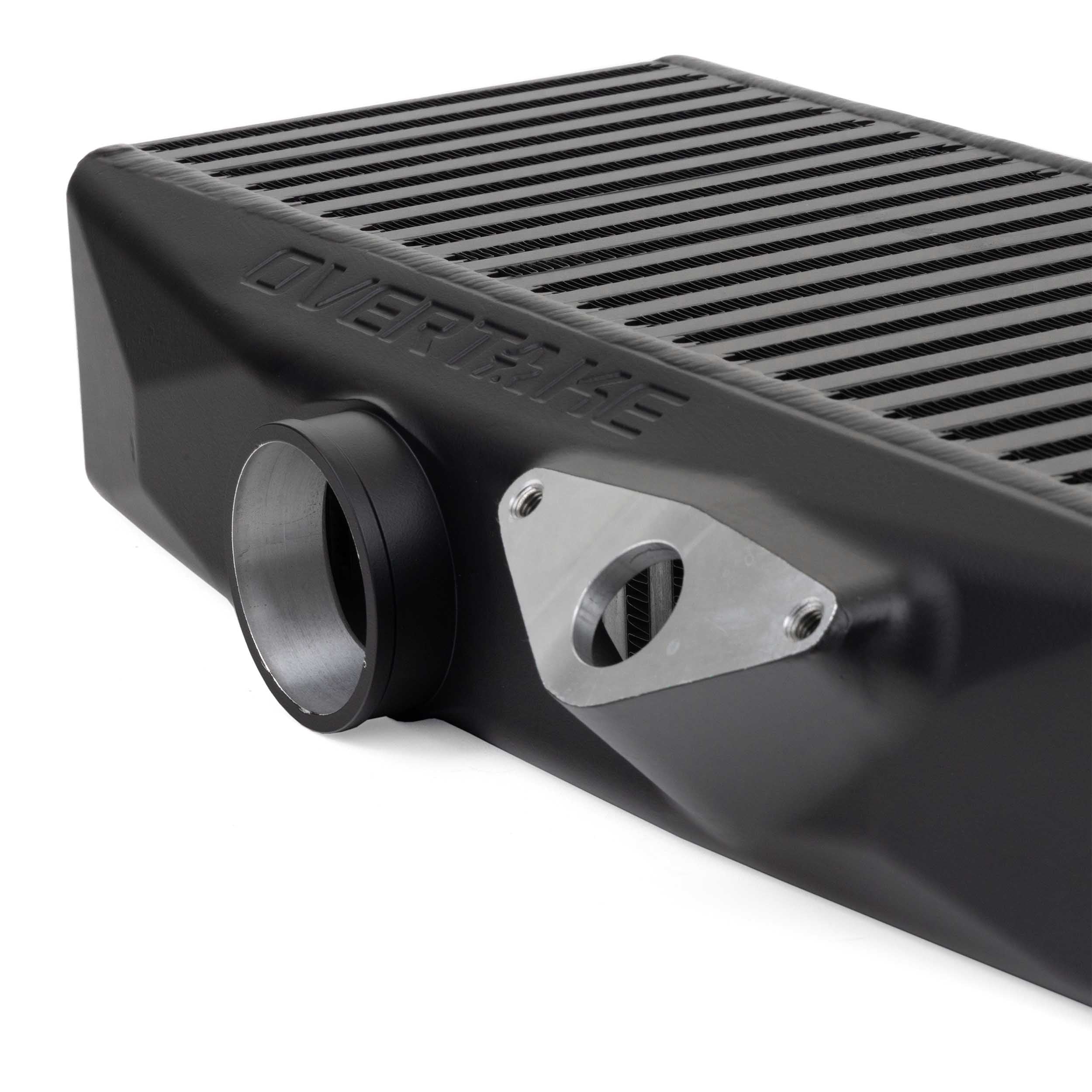

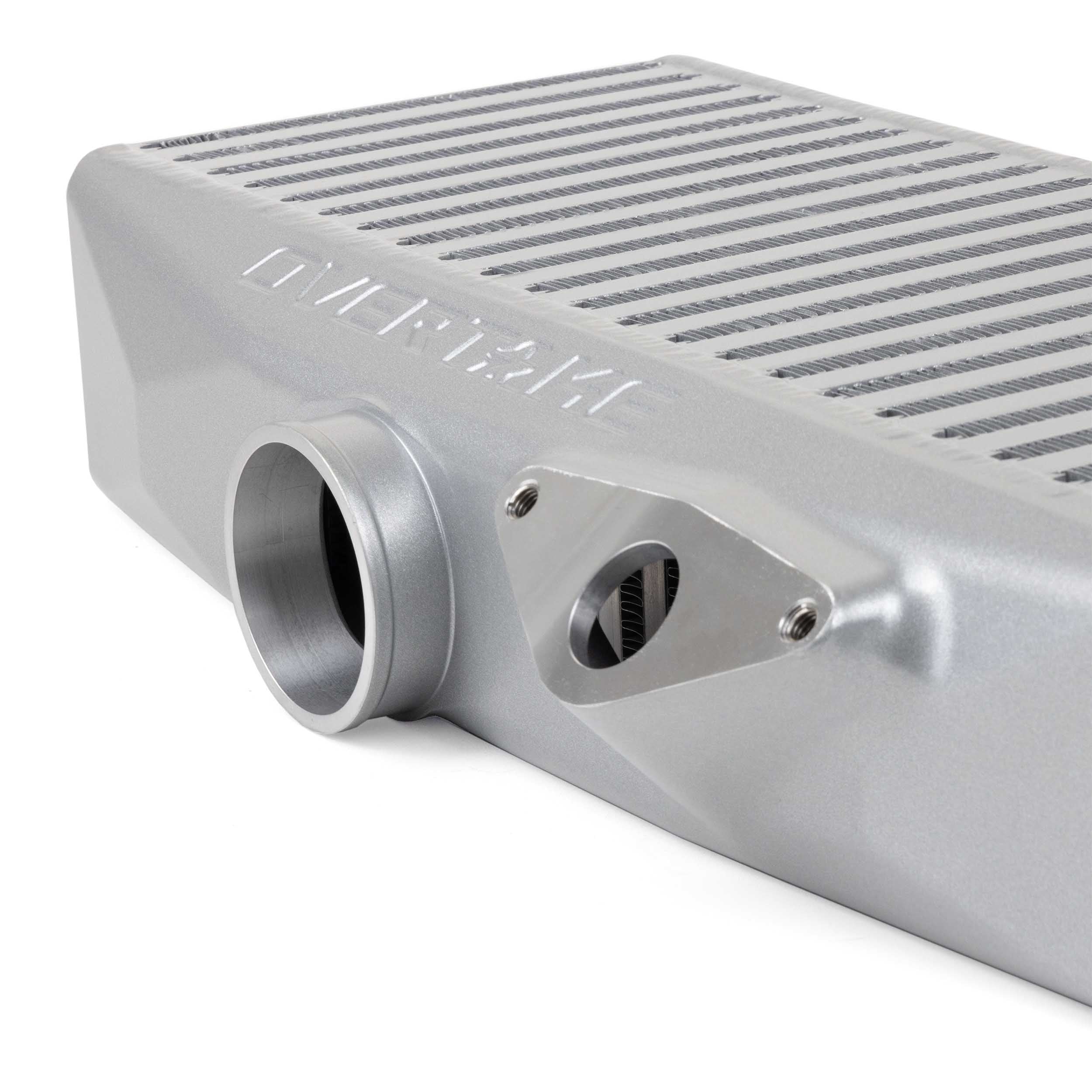

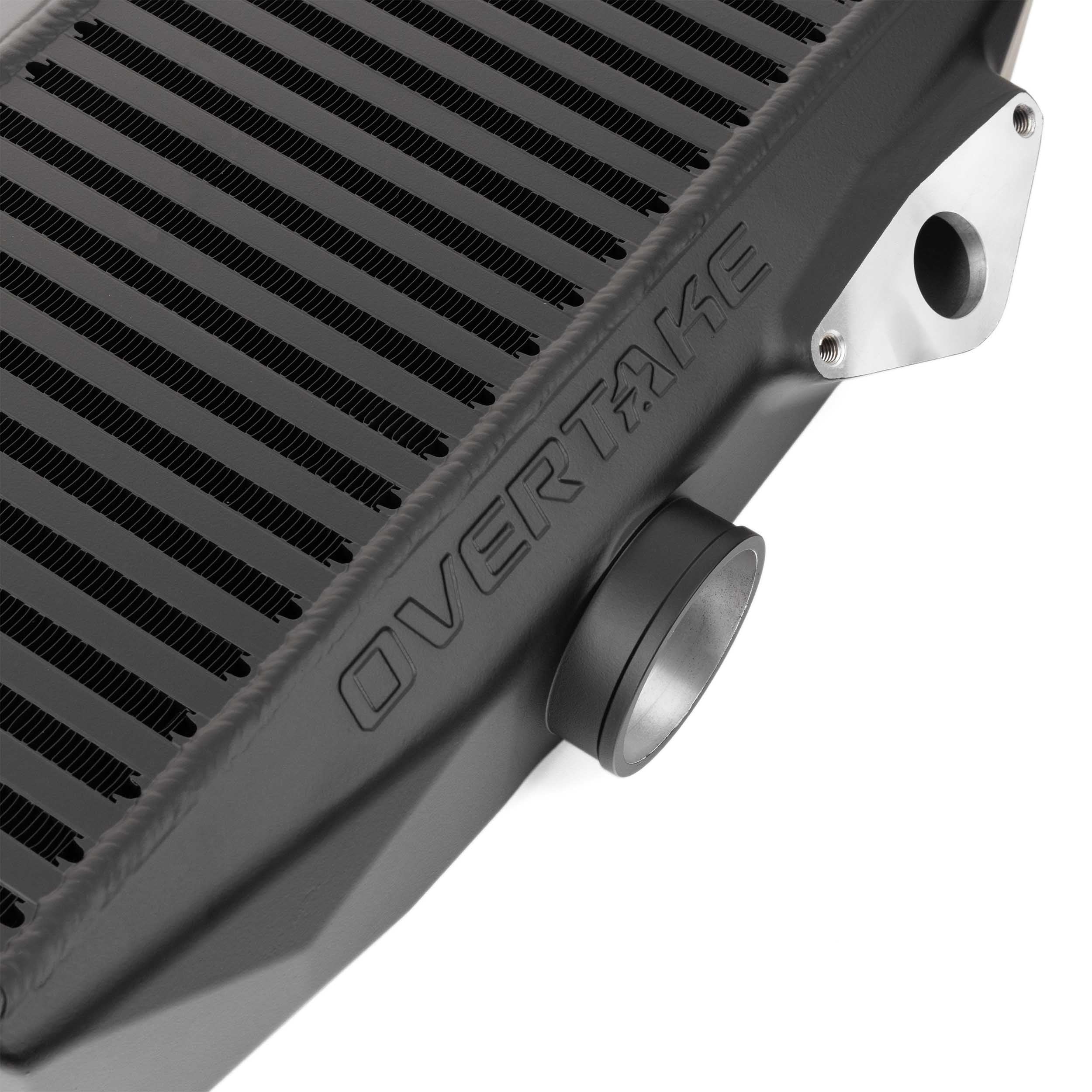

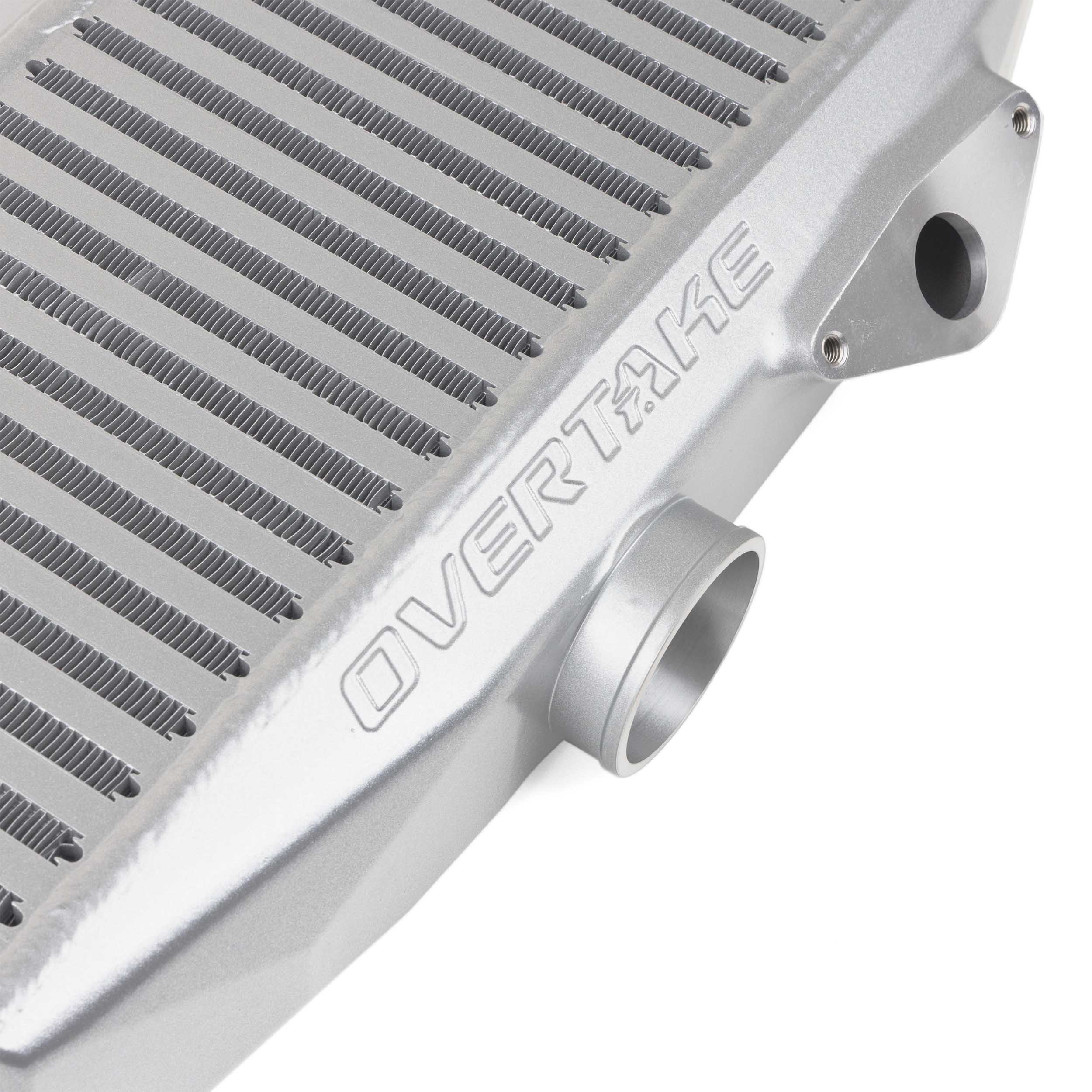

Cast Aluminum End Tanks: CNC machined and welded to a soldered, pressure-tested core for a clean finished look and a leak-tight assembly

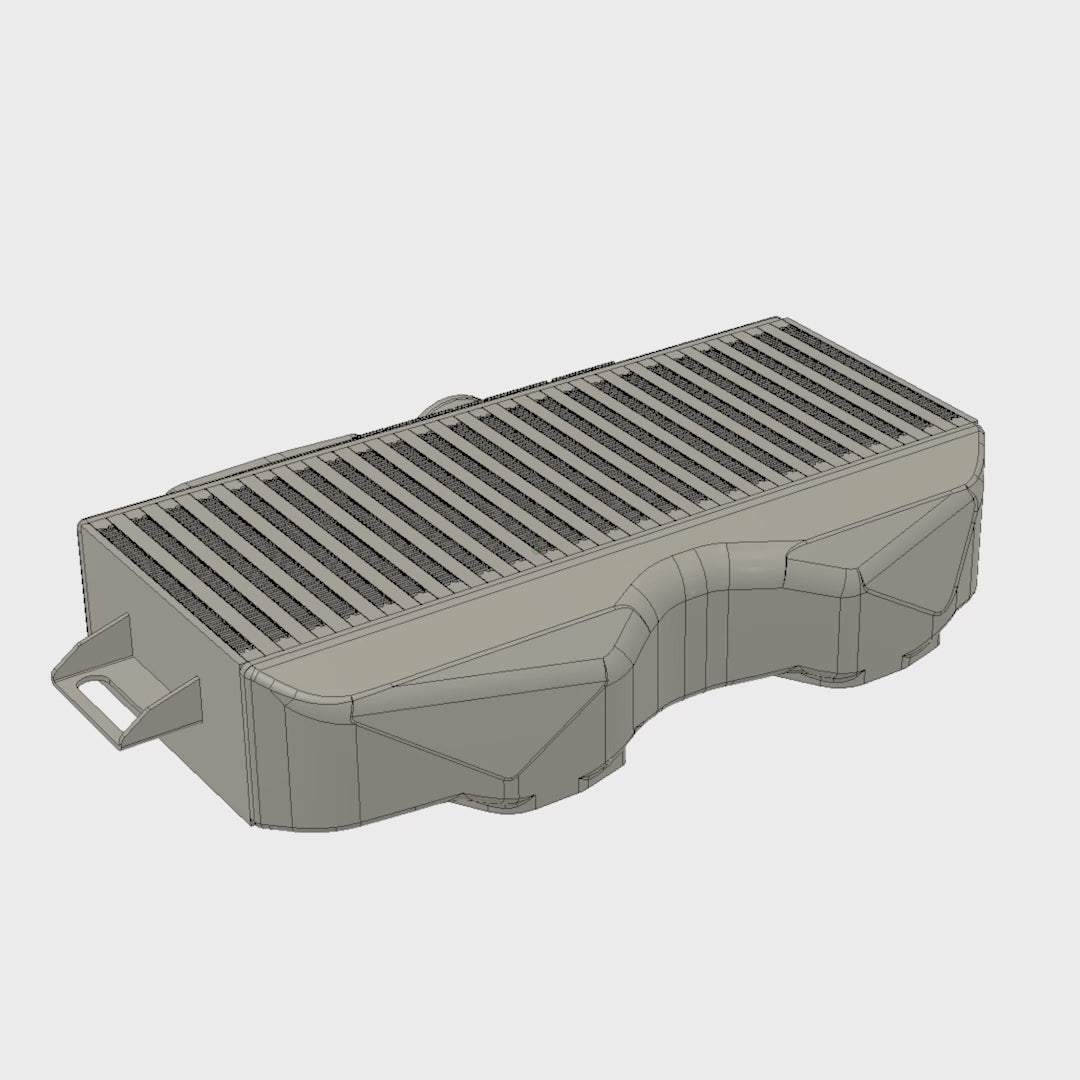

Inlet End tank Shape Designed Around the OEM Y-Pipe: Two-sided internal geometry matches the Y-pipe's dual outlets, guiding flow across the end tank the way the factory piece never did
Outlet End tank Funnel Design: Smoothed internal shape encourages clean flow into the outlet
Durable Powder Coat Finish: Holds up underhood, no effect on heat exchange

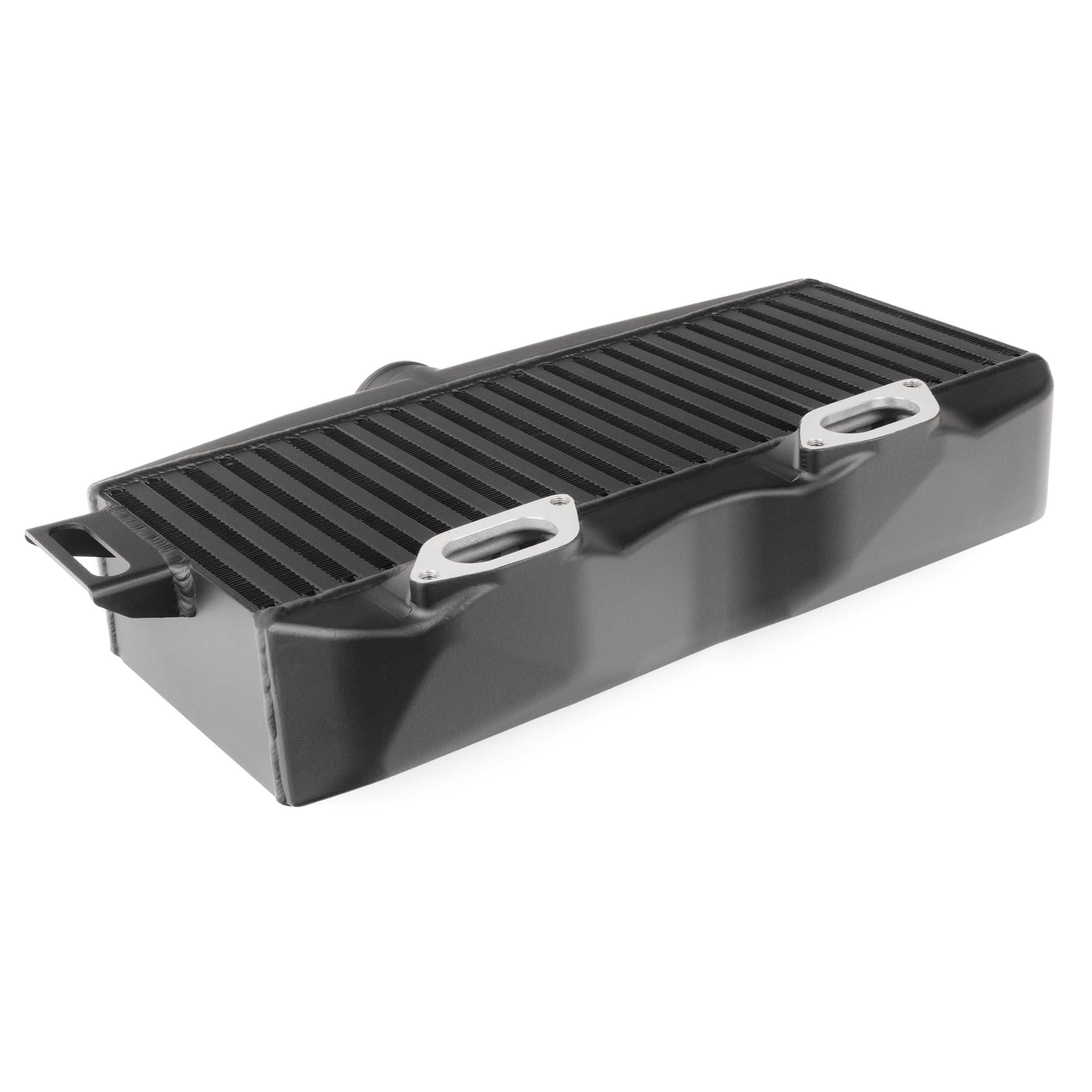

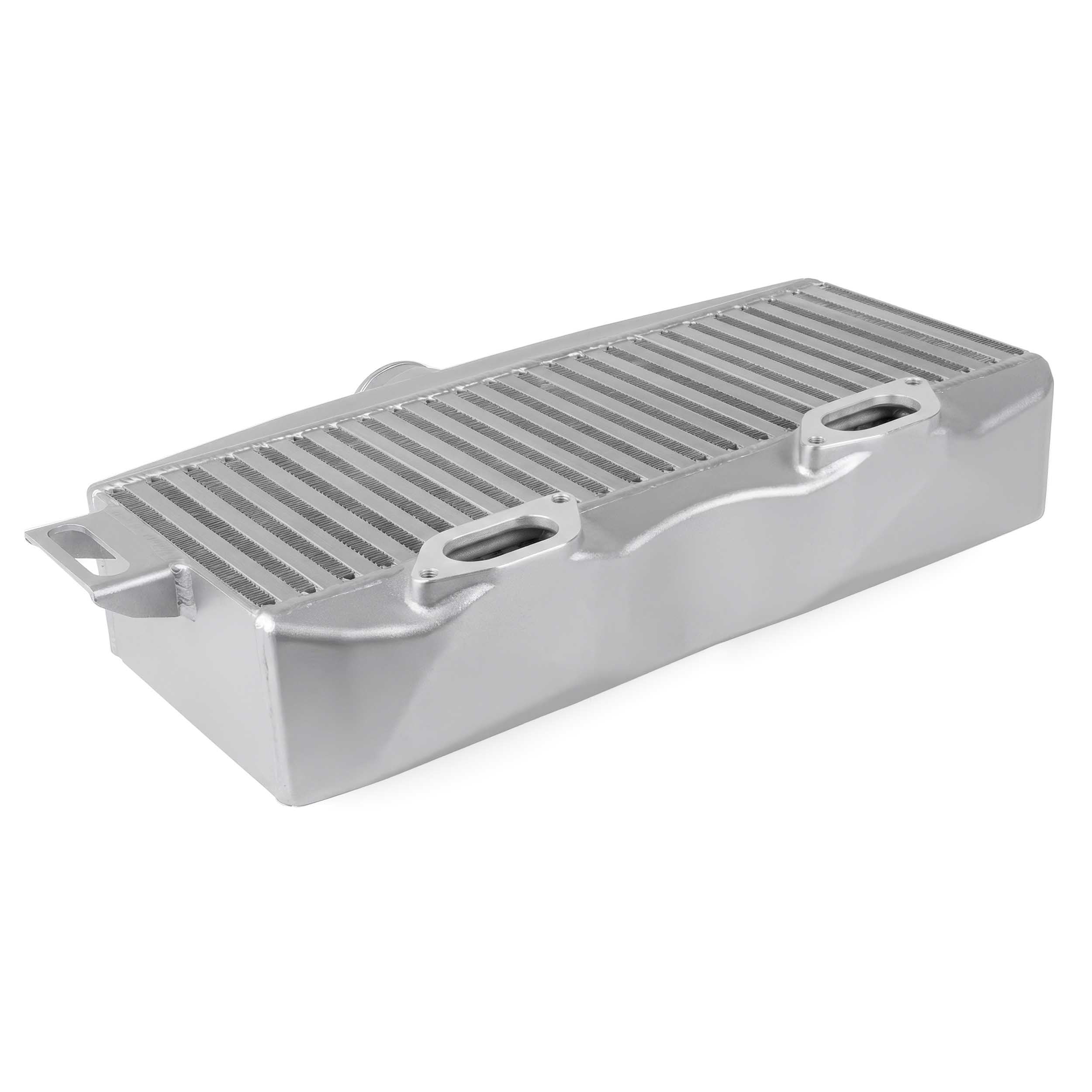

Stock-Location Install: Bolts to the factory mount points with slotted mounts for OEM bushings, fits OEM Y-pipe, intake manifold, and bypass valve

The Results:

With all other factors the same, the OVERTAKE TMIC was able to maintain ~16°F lower peak intake air temperatures when compared to the factory intercooler. This shows that the greater surface area of the thicker OVERTAKE core is much more effective at mitigating heat soak than the factory unit.

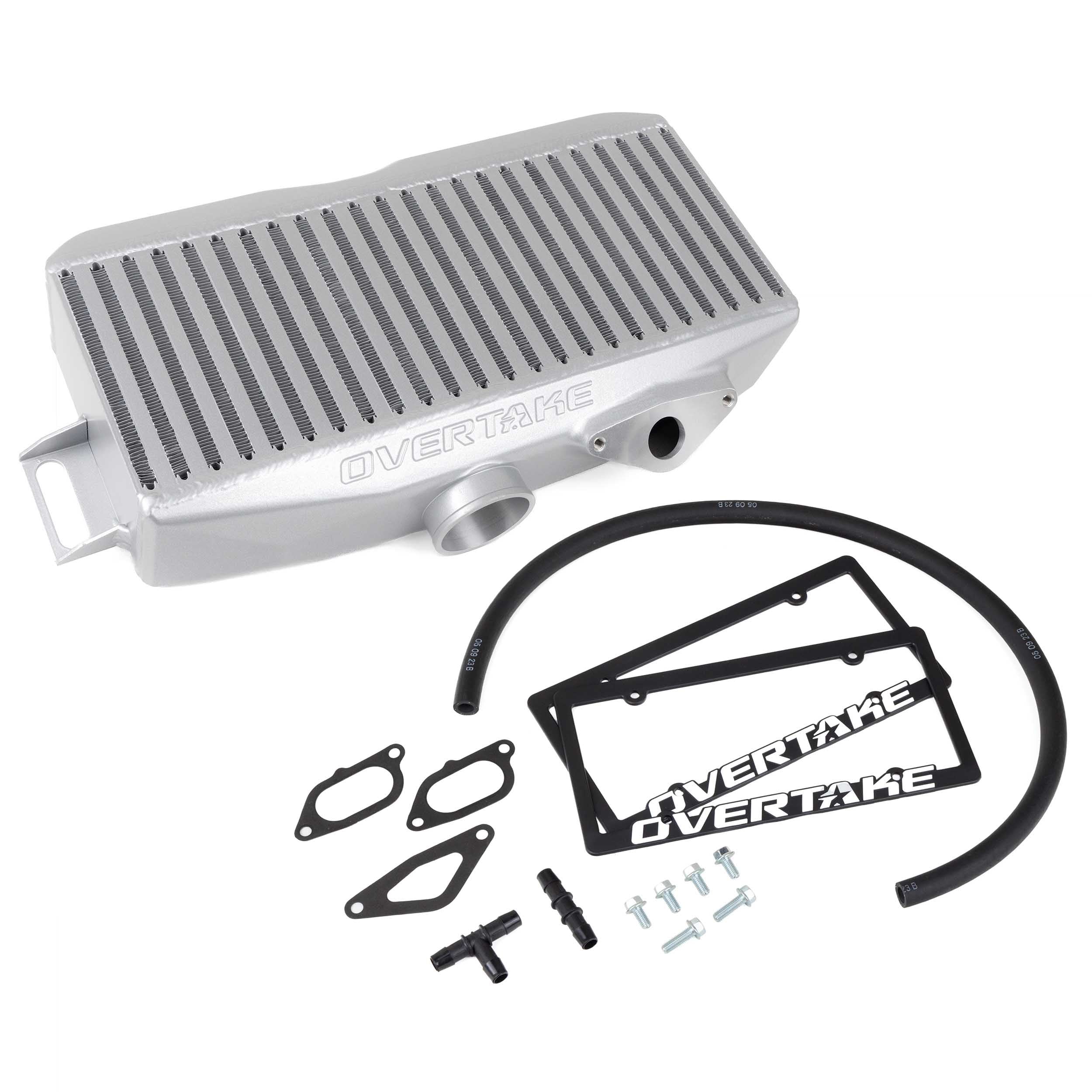

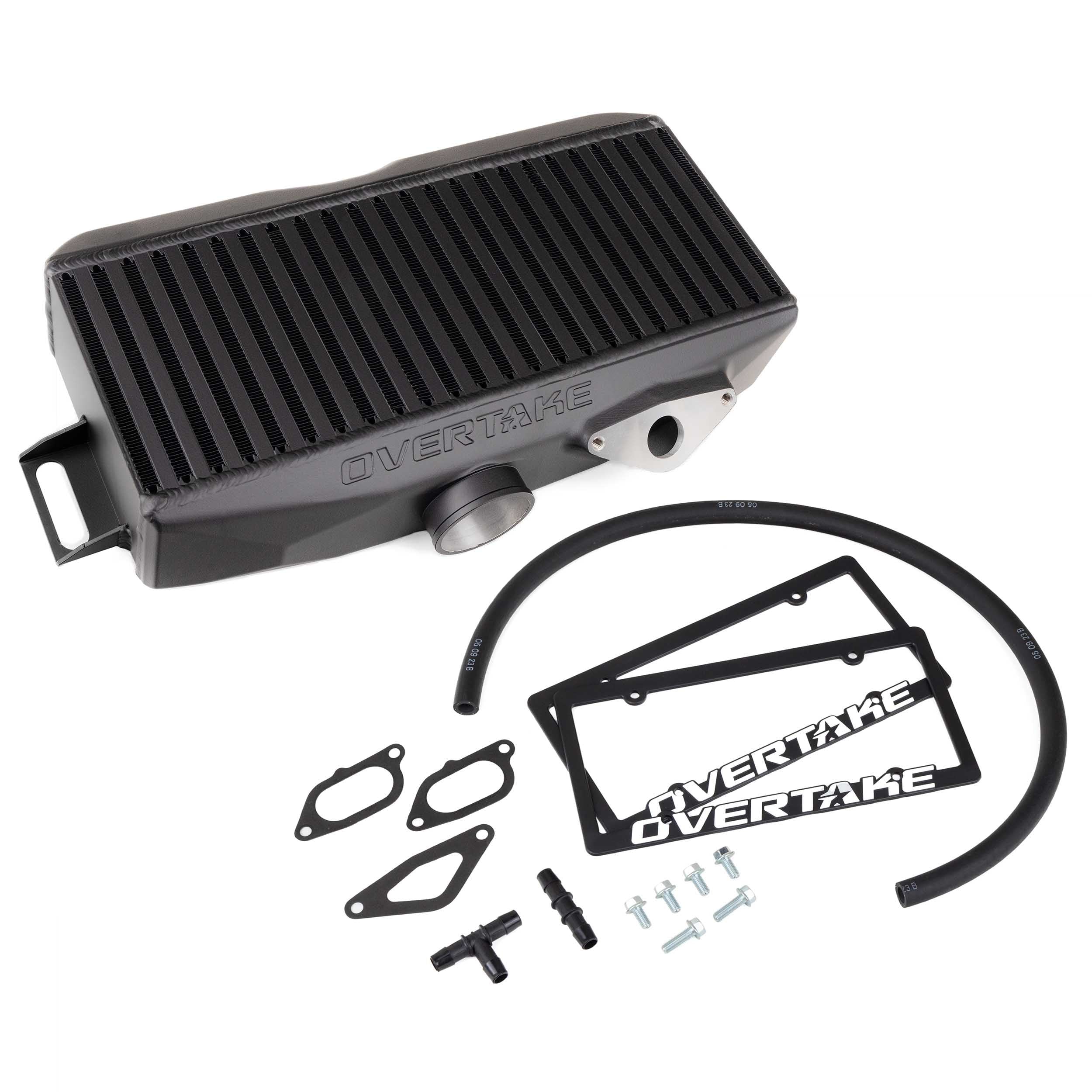

What's In The Box:

1 OVERTAKE Top Mount Intercooler
1 Intercooler Inlet Gasket Set
1 BPV Gasket
1 Straight Fitting
1 T Fitting
3 Feet of 1/2" Vacuum Hose
2 BPV Bolts
4 Y-Pipe Mounting Bolts
2 License Plate Frames

Applications:

2002-2007 Subaru WRX
2004-2021 Subaru STI
2004-2008 Subaru Forester XT (requires upgraded Y-Pipe and STI-style Bypass Valve)
2004-2006 Subaru Baja XT (requires upgraded Y-Pipe and STI-style Bypass Valve)

5 stars: 1 (100%)
4 stars: 0 (0%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

10/10

Super impressed with the OVERTAKE TMIC. Fitment was spot on, install was straightforward, and it looks killer under the hood. Definitely feels more consistent under boost, especially compared to the factory intercooler. Great quality piece.

Will there be a need to bend/wrap the AC lines when installing this on an ‘05 SG FXT?

OVERTAKE

Great question! Generally, if you're running a larger-than-stock TMIC on an SG Forester XT, it's standard to have to move the AC lines a little back and you will have to do the same with our TMIC given the large core size. The good thing is those lines/bracket are decently malleable, so spacing ultimately shouldn't be an issue. In the past, I've also put a little piece of rubber/foam between the lines and intercooler to make sure there's no metal-on-metal rubbing.

Is the black thermal coated? If so with what and what differences do you see under the hood in regards to temps?

OVERTAKE

Hey Wyatt! The black is not a thermal dispersant coating, but rather a standard powder coat. The most important consideration here is that the fins are doing all the work here for heat transfer. The body and castings are very thick in comparison, so they transfer heat very slowly as their main function is to be a pressure vessel, and the coating on them causes nearly no effect because of this.

The fin rows that see the huge volume of air through your hood scoop, have several inches of fins that are louvered and designed to be turbulent. Their entire purpose is to disrupt the airflow so it bounces off as many surfaces as possible. And because only the very top surface of fins on the core has any powder on them, those too becomes negligible. It would be like treating the intercooler core as being thinner overall by a few tenths of a millimeter, which we find to be negligible. The majority of heat transfer is occurring on the surfaces "inside" of the ambient fin packs on the core.

So knowing that, we also tested them during final validation against uncoated and thermal dispersant coated intercoolers, and found the results to be consistent with the chosen sizing of the fin packs. They performed identically regardless of the coating, because the contribution from the insulation effect on the outer surface is so small it's immeasurable. The overwhelming majority of the heat transfer is done beyond the very outer surface of the core, which is why we choose the type of fin designs we do.

Is there a way to adapt this to a 2012 WRX (non-STI) ?

OVERTAKE

Hey Zeus, unfortunately it would not be compatible. We may be looking into offering an option for those in the future.

Will this work with the GrimmSpeed Splitter?

OVERTAKE

Hey Howard! Yes, it should work just fine. The overall dimensions of the core itself are the same.

I’ll ask it first for all the future newbies, will this require a tune?

OVERTAKE

Great question! No, our TMIC does not require a tune at all. You can simply bolt it on and drive. Of course, you would be able to take full advantage of it (increasing boost pressure) that it can handle more efficiently with a tune, but it can still benefit a stock tuned car as well. Lowering IAT's is always a good thing :)
